5-Axis Automatic Stone Setting Machine

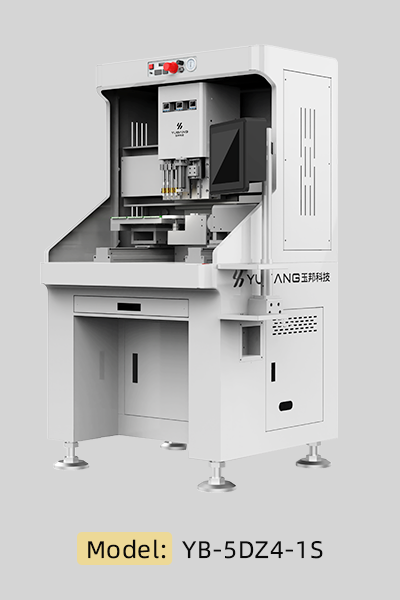

Model: YB-5DZ4-1S

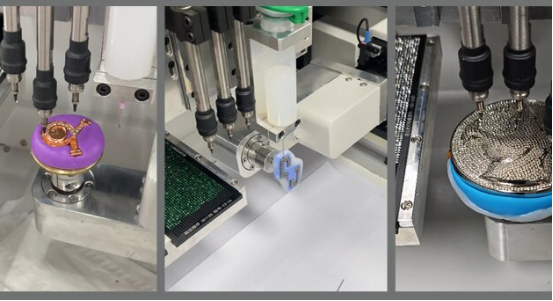

Single station design. The body is made from a one-piece molded mineral cast iron. The 5DZ4-1S Automatic Stone Setting Machine seamlessly integrates gluing and stone setting. The machine features a spray gun positioned above the stone hole, allowing the crystal nozzle to swiftly take the stone from the glue hole and accurately set it onto the wax mold. This advanced machine is compatible with 90% of designs on the market including jewelry, hardware, stainless steel, and crafts (flat, curved, and 3D shapes) and Supports 0.8-3.0mm zircon, moissanite, rhinestones, pearl etc. and more.

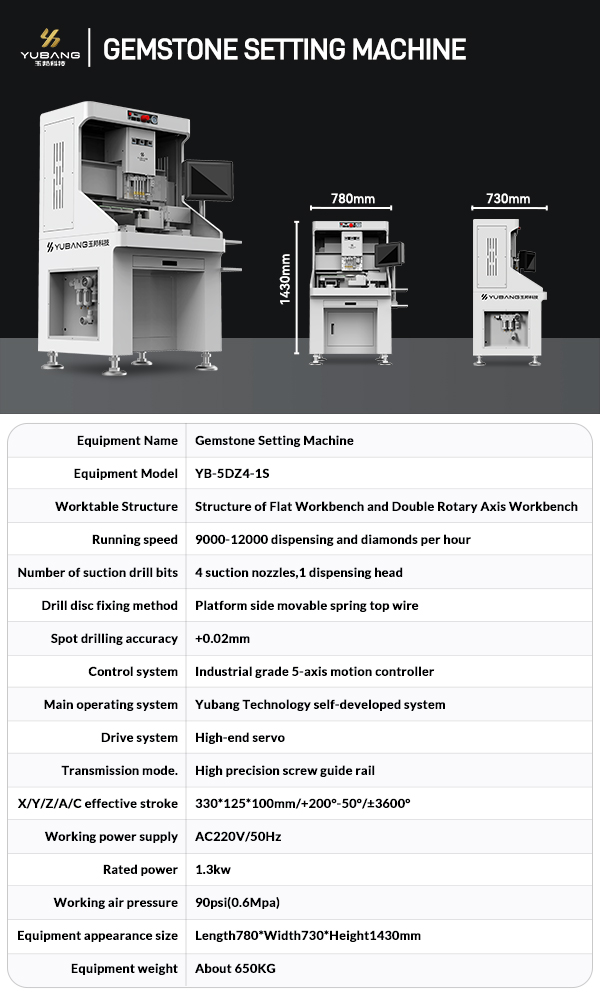

Parameters:
Spot Drilling Accuracy: plusmn;0.02mm
Number of Suction Drill Heads: 4 suction nozzles
Drilling Speed: 9,000 - 12,000 diamonds/hour Equipment

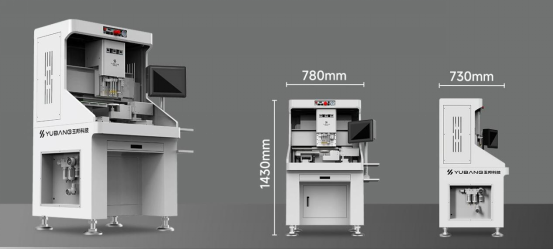

Size: L780*W730*H1430mm
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
5-Axis Automatic Stone Setting Machine
Single station design, The body is made from a one-piece molded mineral cast iron,First apply glue, then set the rhinestone, with the added capability of wax setting.
This machine is compatible with 90% of designs on the market including jewelry, hardware, stainless steel, and crafts (flat, curved, and 3D shapes) and Supports 0.8-3.0mm zircon, moissanite, rhinestones,pearl etc.

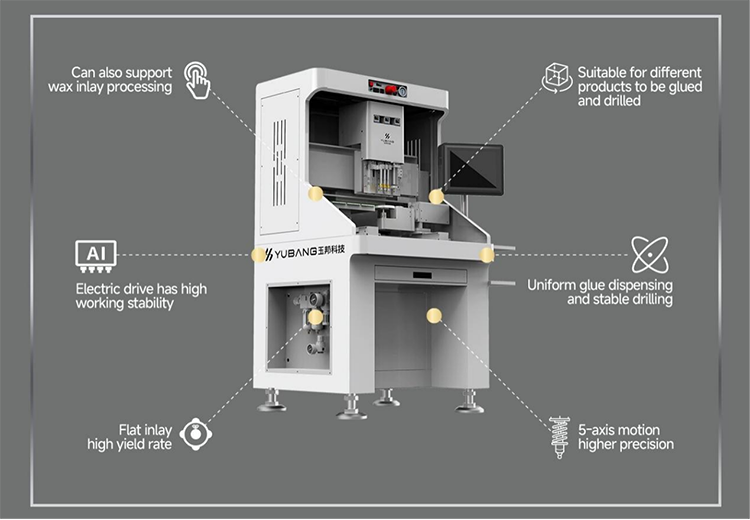

YuBang focuses on precision and reliability, featuring its proprietary CNC Precision System, 5-axis Linkage Device, and Intelligent Identification System. This ensures 100% stability and boosts production efficiency by 400%.
Our compact units come at a better price point and are far more adaptable to your workspace. The reliability of our process means no rework, period, which directly translates to higher yields and a sharp reduction in both labor hours and material waste.
5-Axis Automatic Stone Setting Machine
Its single station design , making it ideal for jewelry factories, casting workshops, and design studios. Equipped with YUBANG’s self-developed control system and high-end servo drive, this 5 Axis Automatic Stone Setting Machine delivers precision, reliability, and durability for modern jewelry production.
YUBANG 3D Automatic Wax Setting Machine is the better choice for Jewelry Manufacturing Factories,Jewelry Design Workshops,Training Schools for Jewelry Design and Jewelry Industry comparing with common type.
FAQ:
Q1: What materials and stone types can this machine set?
A: Suitable for various materials such as jewelry, hardware, stainless steel, and crafts.Supports flat, curved, and 3D designs.Compatible with diamonds, zircon, moissanite, rhinestones,pearl and most synthetic gemstones .Suitable for multi-color and multi-size combinations.
Q2: What is the supported stone size range?
A: The machine can set stones from 0.8mm to 3.0mm.
Q3: Is it compatible with different jewelry molds?
A: Yes, the 5-axis linkage system allows setting on flat, curved, arc-shaped, and 3D jewelry models, suitable for over 90% of jewelry styles in the market.
Q4: How accurate is the stone placement?
A: The CNC precision system ensures ±0.02mm accuracy for consistent and stable results.
Q5: What is the production speed?
A: It can set 9,000–12,000 stones per hour, depending on design complexity.
Q6: Will the stones or jewelry mold be damaged during setting?
A: No. The electric-driven pressure ensures a gentle and uniform force that protects both jewelry molds and stones.
Q7: Do you provide installation and training?
A: Yes, we provide one-on-one online training, video tutorials, and remote technical support to ensure smooth operation.
Q8: Do you offer OEM/ODM services?
A: Yes, we provide OEM and ODM services to fully support your branding and customization needs.
