5-Axis Mini Wax Setting Machine
Model: YB-MN-5DZ3Z

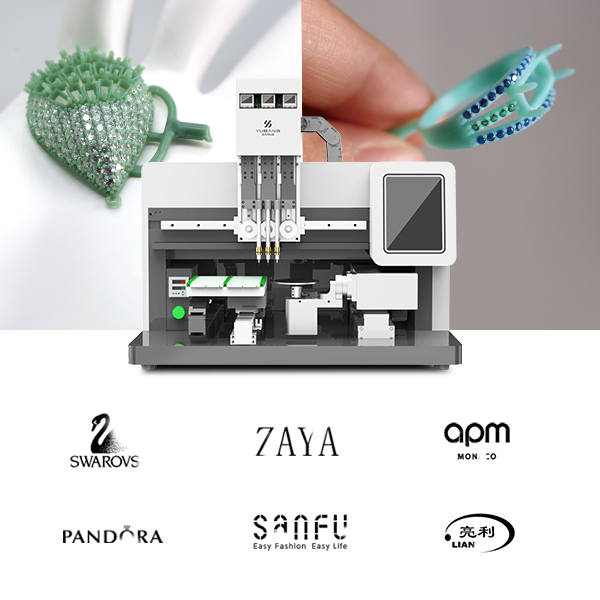

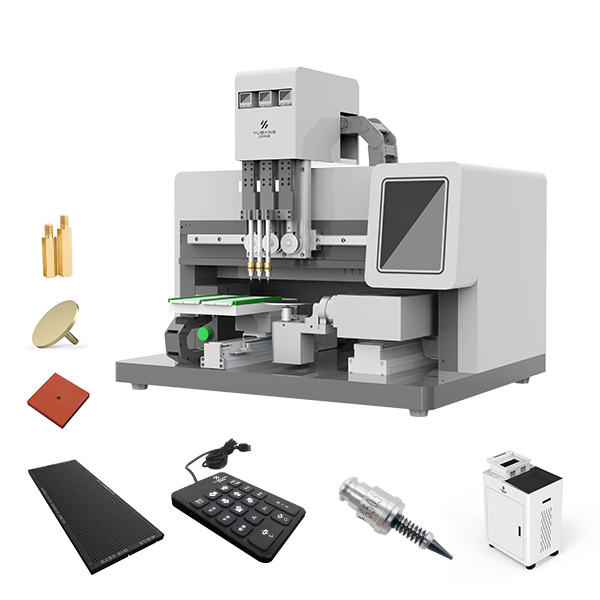

Mini Wax Setting Machine is a compact and fully automatic solution for precision wax model stone setting. Designed to handle rings, necklaces, and earrings, it integrates advanced vision and CNC systems to set stones on flat, curved, and 3D wax models with ease.
Despite its miniature size, it delivers impressive efficiency. The machine utilizes an electric drive mechanism for gentle and consistent force, accurately setting stones like zircon and moissanite (0.8-3.0mm) to protect your wax models. Its 5-axis linkage workbench ensures high-precision placement, achieving an accuracy of up to 0.01mm without deviation over continuous operation.
This mini machine is your ideal partner for mastering complex setting techniques on various mold shapes, significantly boosting productivity and yield in a small footprint.
Parameters:
Spot Drilling Accuracy: plusmn;0.02mm
Number of Suction Drill Heads: 4 suction nozzles
Drilling Speed: 9000 - 12000 diamonds/hour Equipment
Size: L710mm*W600mm*H670mm
| Equipment Name | 5-Axis Mini Wax Setting Machine |
|---|---|
| Equipment Model | YB-MN-5DZ3Z |
| Worktable Structure | Five-axis CNC work table |
| Running speed | 9000-12000 diamonds per hour |
| Number of suction drill bits | 3 suction nozzles |
| Drill disc fixing method | movable spring-loaded top wire on the upper side of the platform |
| Spot drilling accuracy | +0.02mm |
| Control system | Industrial Grade 5-axis Motion Controller |
| Main operating system | Yubang Technology self-developed system |
| Drive system | High-end servo |
| Transmission mode | High Precision Screw Guide |
| X/Y/Z/A/C effective stroke | 285*95*100mm/+180° -30° /+360° |
| Working power supply | AC220V/50Hz |
| Rated power | 1.3kw |
| Working air pressure | 90psi (0.6Mpa) |
| Equipment appearance size | Length710mm*Width600mm*Height670mm |
| Equipment weight | About 115KG |
1. High Precision Setting
Accurate Placement: CNC-controlled micro-positioning ensures precise stone alignment on wax molds, reducing human error and increasing production consistency.
2. Stable & Durable Build
Quality Materials: Rigid metal frame and industrial-grade components deliver long-term stability, low vibration, and reliable performance for daily jewelry production.
3. Easy Operation
User-Friendly Interface: Simple touch-screen controls allow quick parameter adjustment, making it easy for beginners and efficient for skilled operators.
4. Compact & Space-Saving
Mini Design: Small footprint machine fits easily into jewelry workshops, saving space while providing professional-level stone-setting functions.
5. Efficient Production
Fast Setting Performance: High-speed electric drive system boosts productivity, enabling consistent setting on rings, pendants, earrings, and various wax patterns.
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
Guide of YUBANG Automatic Mini Wax Setting Machine
Comprising
Key Specifications
Technology and Software
How Does Yubang Automatic jewelry Stone Setting Machine Work
1.Comprising
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
Desktop design is compact and portable, light weight, economic space occupation, easy to transport.Mini wax setting machine size: L710mm*W600mm*H670mm
This machine is compatible with 90% of designs on the market (flat, curved, and 3D wax models) and Supports 0.8-3.0mm zircon, moissanite, rhinestones, etc.
Yu Bang focuses on precision and reliability, featuring its proprietary CNC Precision System, Five-axis Linkage Device, and Intelligent Identification System. This ensures 100% stability and boosts production efficiency by 400%.
Our compact units come at a better price point and are far more adaptable to your workspace. The reliability of our process means no rework, period, which directly translates to higher yields and a sharp reduction in both labor hours and material waste.
2.Mini Wax Setting Machine Key Specifications
Micro-Compact Design:
Its ultra-miniature body saves valuable workspace and is easy to transport, offering unparalleled flexibility for any shop size.
5-Axis Versatility:
Equipped with a 5-axis linkage workbench, it expertly handles flat, curved, and 3D wax models, accommodating over 90% of market styles.
Intelligent Electric Drive:
Employs an electric drive principle that ensures consistent, gentle setting force, protecting wax models and stones while replicating the quality of hand-setting.
Multi-Stone Efficiency:
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
Unwavering Precision:
Built with a high-end CNC system and servo drives, it maintains stone-setting accuracy within 0.01mm, ensuring flawless and standardized results batch after batch.
YUBANG Mini Wix Setting Machine Its desktop design saves space, making it ideal for jewelry factories, casting workshops, and design studios. Equipped with YUBANG’s self-developed control system and high-end servo drive, this mini wax setting machine delivers precision, reliability, and durability for modern jewelry production.
YUBANG Mini Wix Setting Machine is the better choice for Jewelry Manufacturing Factories,Jewelry Design Workshops,Training Schools for Jewelry Design and Jewelry Industry comparing with common type.
FAQ:
Q1: What materials and stone types can this machine set?
A: It supports diamonds, zircons, moissanite, rhinestones, and most synthetic gemstones. Suitable for multi-color and multi-size combinations.
Q2: What is the supported stone size range?
A: The machine can set stones from 0.8mm to 3.0mm.
Q3: Is it compatible with different wax molds?
A: Yes, the 5-axis linkage system allows setting on flat, curved, arc-shaped, and 3D wax models, suitable for over 90% of jewelry styles in the market.
Q4: How accurate is the stone placement?
A: The CNC precision system ensures ±0.02mm accuracy for consistent and stable results.
Q5: What is the production speed?
A: It can set 9,000–12,000 stones per hour, depending on design complexity.
Q6: Will the stones or wax mold be damaged during setting?
A: No. The electric-driven pressure ensures a gentle and uniform force that protects both wax molds and stones.
Q7: Do you provide installation and training?
A: Yes, we provide one-on-one online training, video tutorials, and remote technical support to ensure smooth operation.
