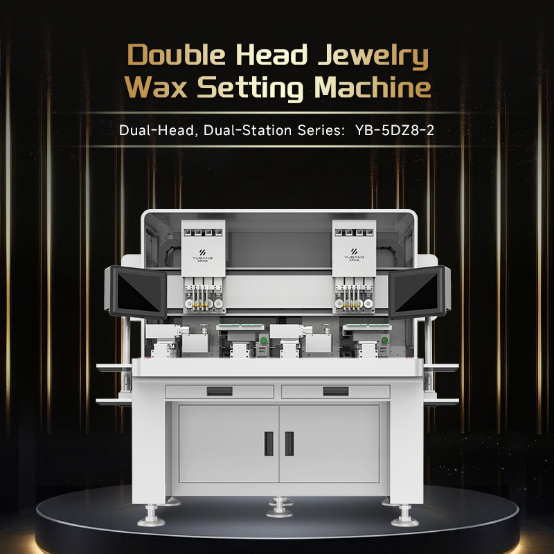

Double Head Wax Setting Machine
Model: YB-5DZ8-2
With 8 suction nozzles and independent dual workstations, this machine offers unmatched efficiency—one machine equals two. Ideal for high-volume production with multi-color and flexible setting styles.
Parameters:
Spot Drilling Accuracy:plusmn;0.02mm
Number of Suction Drill Heads: 8 suction nozzles
Drilling Speed: 36,000 - 40,000 diamonds/hour Equipment
Size: L1450mm*W750mm*H1395mm
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
Double Head Wax Setting Machine
With 8 suction nozzles and independent dual workstations design, it can set up to 40,000 diamonds per hour, offering unmatched efficiency—one machine equals two!Multi-color,style setting with flexible.
This machine is compatible with 90% of designs on the market (flat, curved, and 3D wax models) and Supports 0.8-3.0mm zircon, moissanite, rhinestones, etc.
YuBang focuses on precision and reliability, featuring its proprietary CNC Precision System, 5-axis Linkage Device, and Intelligent Identification System. This ensures 100% stability and boosts production efficiency by 400%.
Our compact units come at a better price point and are far more adaptable to your workspace. The reliability of our process means no rework, period, which directly translates to higher yields and a sharp reduction in both labor hours and material waste.

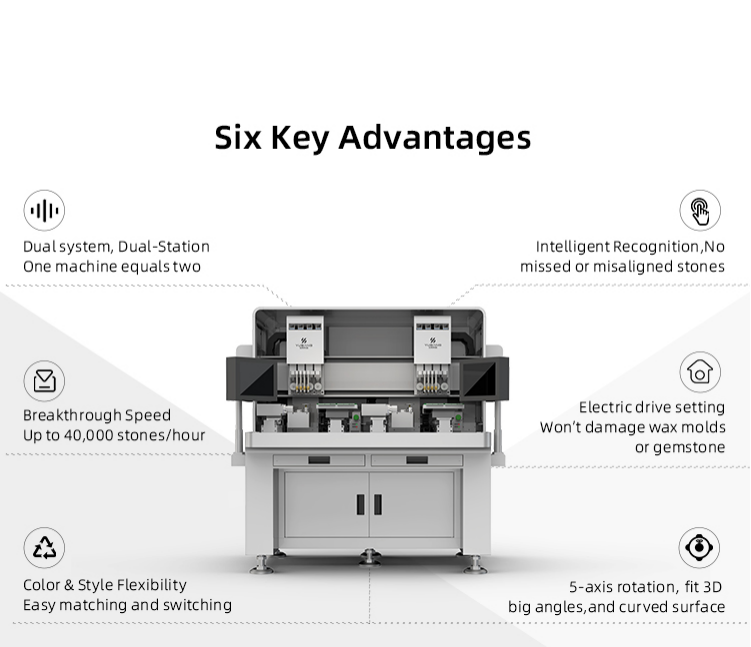

Six Key Advantages
1. Dual system, Dual-Station – One machine equals two
2. Breakthrough Speed – Up to 40,000 stones/hour
3. Color & Style Flexibility – Easy matching and switching
4. Intelligent Recognition – No missed or misaligned stones.
5. Electric drive setting – Won’t damage wax molds or gemstone
6. 5-axis rotation– fit 3D ,big angles, and curved surface

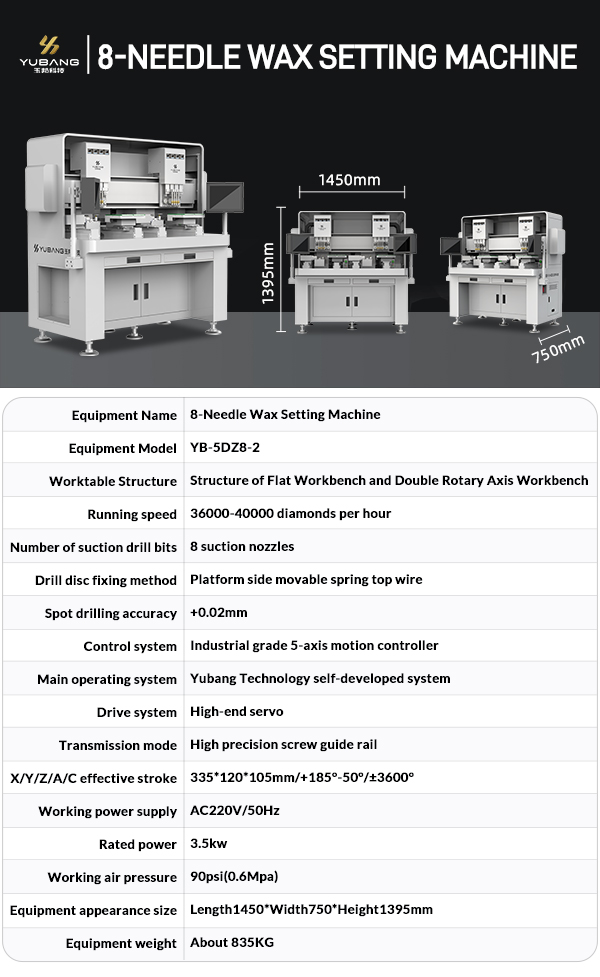

Model: | YB-5DZ8-2 | Operating system: | Yubang Technology Self-developed System |
Running speed
| 36000-40000 diamonds per hour | Drive System: | High-end servo |
Accuracy: | ±0.02mm | size: | L1450*W750mm*H1395mm |
weight:
| About 835KG | Power: | 3.5kW /AC220V/50Hz |
YUBANG Double Head Wax Setting Machine
Its Independent workstations design is more fast, making it ideal for jewelry factories, casting workshops, and design studios. Equipped with YUBANG’s self-developed control system and high-end servo drive, this Double Head wax setting machine delivers precision, reliability, and durability for modern jewelry production.
YuBang Double Head Wax Setting Machine
Compared with the common type,Our yubang latest design power
1. Dual System&Dual Station 8 nozzle Design
2. More stable(99.99%)
3. Highly Accurate(0.02mm)
4. Higher production efficiency(40,000 diamonds/h )
5. No missing stone (Intelligent ldentification )
6. Multi colors and sizes stones completed at once
YUBANG Double Head Wax Setting Machine is the better choice for Jewelry Manufacturing Factories,Jewelry Design Workshops,Training Schools for Jewelry Design and Jewelry Industry comparing with common type.
