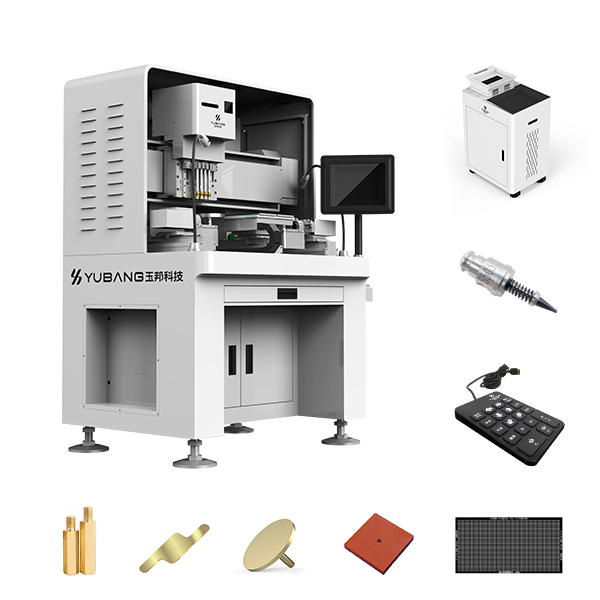

Double Station Wax Setting Machine

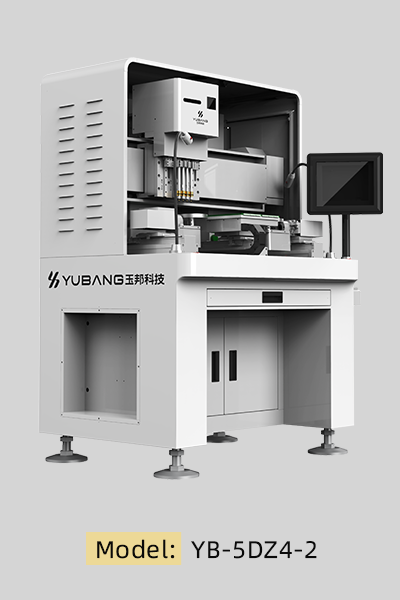

Model: YB-5DZ4-2
Double station design for continuous operation & while one side is setting, the other side can be prepared, improving throughput. Suitable for jewelry factories and design studios.

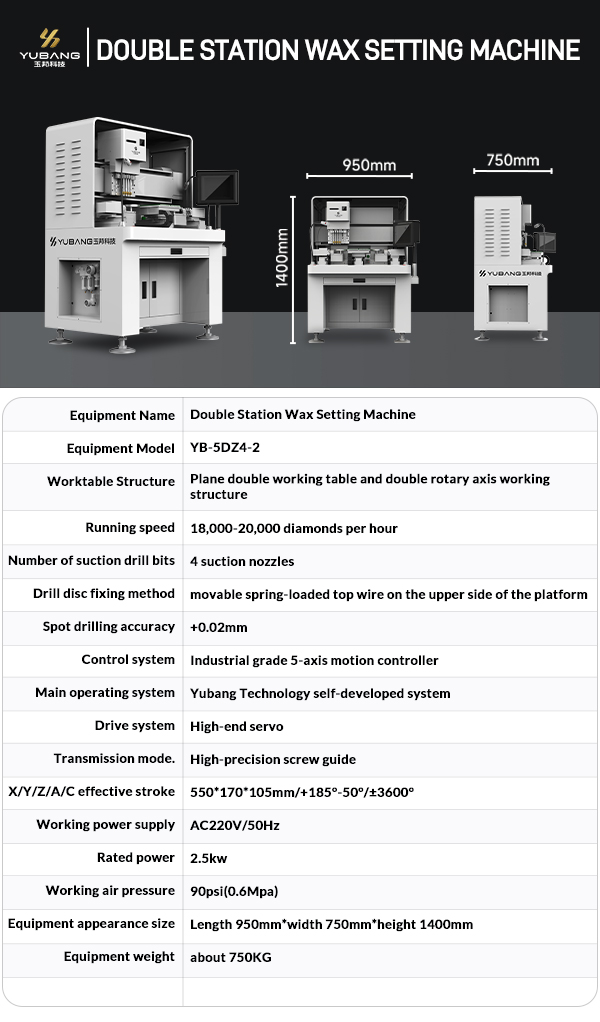

Parameters:
Spot Drilling Accuracy: plusmn;0.02mm
Number of Suction Drill Heads: 4 suction nozzles
Drilling Speed: 18,000 - 20,000 diamonds/hour Equipment
Size: L950mm*W750mm*H1400mm
Double Station Design – Set stones on one side while preparing the next mold, achieving nonstop operation.
High Speed & Efficiency – Handles 18,000–20,000 stones/hour, dramatically reducing labor time.
CNC Precision System – Ensures ±0.02mm accuracy, powered by YUBANG’s self-developed control system and a high-end servo drive.
Intelligent Identification – No missing stones; stable 99.99% accuracy for continuous automated setting.
5-Axis Linkage System – Compatible with flat, curved, arc-shaped, and 3D wax models, suitable for all jewelry styles.
Compact & Durable Design – Built to save workspace while maintaining long-term reliability.
Wide Stone Compatibility – Works with diamond, zircon, moissanite, and synthetic gemstones.
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
Double Station Wax Setting Machine
YUBANG Double Station Wax Setting Machine YB-5DZ4-2 is a next-generation automatic jewelry stone setting machine designed for high-efficiency and precision in modern jewelry manufacturing.
Key Features:
Double Station Design – Set stones on one side while preparing the next mold, achieving nonstop operation.
High Speed & Efficiency – Handles 18,000–20,000 stones/hour, dramatically reducing labor time.
CNC Precision System – Ensures ±0.02mm accuracy, powered by YUBANG’s self-developed control system and a high-end servo drive.
Intelligent Identification – No missing stones; stable 99.99% accuracy for continuous automated setting.
5-Axis Linkage System – Compatible with flat, curved, arc-shaped, and 3D wax models, suitable for all jewelry styles.
Compact & Durable Design – Built to save workspace while maintaining long-term reliability.
Wide Stone Compatibility – Works with diamond, zircon, moissanite, and synthetic gemstones.

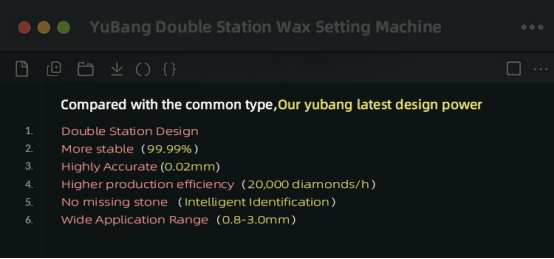

400% Faster Production Efficiency than manual or single-station systems
99.99% Setting Stability—no missing or misplaced stones
Lower Labor & Material Costs—fully automated and precise
CE Certified & OEM/ODM Available
Excellent After-Sales Support—training videos, remote guidance, and online service
Compact and cost-efficient, it’s ideal for Jewelry manufacturing factories,Jewelry design studios,Casting and mold workshops,Jewelry training institutions.Perfect for setting stones on wax models before casting rings, bracelets, pendants, and other fine jewelry items.
FAQ:
Q1: What materials and stone types can this machine set?
A1: It supports diamonds, zircons, moissanite, rhinestones, and other synthetic gemstones. Suitable for single or multi-color stone combinations.
Q2: What stone sizes can it handle?
A2: The machine supports stones ranging from 0.8mm to 3.0mm in diameter.
Q3: Can it work with all wax mold types?
A3: Yes. The 5-axis linkage system supports flat, curved, arc-shaped, and 3D wax models, compatible with 90% of market designs.
Q4: How accurate is the machine’s setting?
A4: The CNC precision system guarantees ±0.02mm accuracy for consistent and flawless stone placement.
Q5: How fast can it operate?
A5: The YB-5DZ4-2 can set 18,000-20,000 stones per hour, depending on stone size and design complexity.
Q6: Will the stones or wax molds be damaged during setting?
A6: No. The electric servo-driven pressure provides gentle and even force, ensuring that both stones and wax molds remain intact.
Q7: Is installation or training provided?
A7: Yes, we offer one-on-one online training, video tutorials, and remote technical support to ensure smooth setup and operation.
Q8: Do you provide OEM/ODM services?
A: Yes. Customized logos, configurations, and functions are available for global partners.
