8-Needle Gemstone Setting Machine
Model: YB-5DZ8-2S
With independent dual workstations, this machine offers double the efficiency and flexibility—one machine equals two! It applies glue first, then sets the gemstones, and is also capable of wax setting. This machine is compatible with 90% of designs on the market including jewelry, hardware, stainless steel, and crafts (flat, curved, and 3D shapes) and Supports 0.8-3.0mm gemstone zircon, moissanite, rhinestones, pearl etc. The YB-5DZ8-2S featuring its proprietary CNC Precision System. The reliability of our process means no rework, period, which directly translates to higher yields and a sharp reduction in both labor hours and material waste.
Parameters:
Spot Drilling Accuracy: plusmn;0.02mm
Number of Suction Drill Heads: 8 suction nozzles
Drilling Speed: 18000- 24,000 diamonds/hour

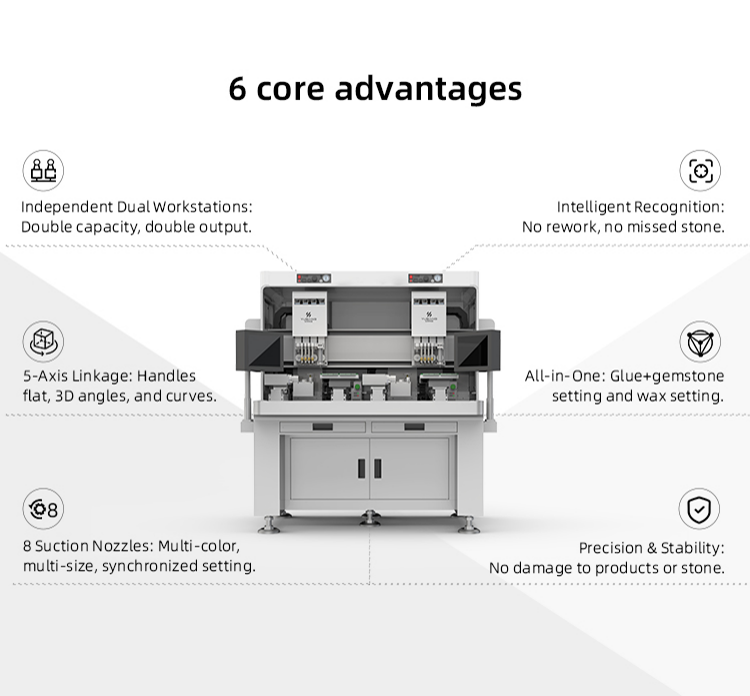

6 core advantages:
1.Independent Dual Workstations: Double capacity, double output.
2. 5-Axis Linkage: Handles flat, 3D angles, and curves.
3. 8 Suction Nozzles: Multi-color, multi-size, synchronized setting.
4. Intelligent Recognition: No rework, no missed stone.
5. All-in-One: Glue+gemstone setting and wax setting.
6. Precision & Stability: No damage to products or stone.
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
8-Needle Dual Station Stone Setting Machine
The YUBANG 8-Needle Gemstone Setting Machine is a high-performance automatic jewelry stone setting solution designed for large-scale and precision jewelry production.Equipped with independent dual workstations, it operates as two machines in one — doubling output efficiency and flexibility. It automatically applies glue, sets gemstones, and supports wax setting mode, making it a versatile system for jewelry, stainless steel, and craft products.
Key Features
Dual Workstations – Double EfficiencyTwo independent stations allow simultaneous operation, achieving two times the productivity with one machine.
8-Needle High-Speed System – The 8 suction nozzles support multi-color and multi-size gemstones, setting different stones in one process with precision and consistency.
Smart Recognition System – Automatically detects and corrects positioning errors to prevent missing or misaligned stones, ensuring 99.99% stability.
5-Axis Linkage Mechanism– Handles flat, curved, and 3D models, making it compatible with over 90% of jewelry and craft designs on the market.
All-in-One Function – Performs glue application, gemstone setting, and wax setting in one integrated operation — perfect for jewelry, hardware, and stainless steel products.
CNC Precision Technology – Delivers ±0.02mm accuracy for flawless results, powered by YUBANG’s self-developed control system and high-end servo drive.

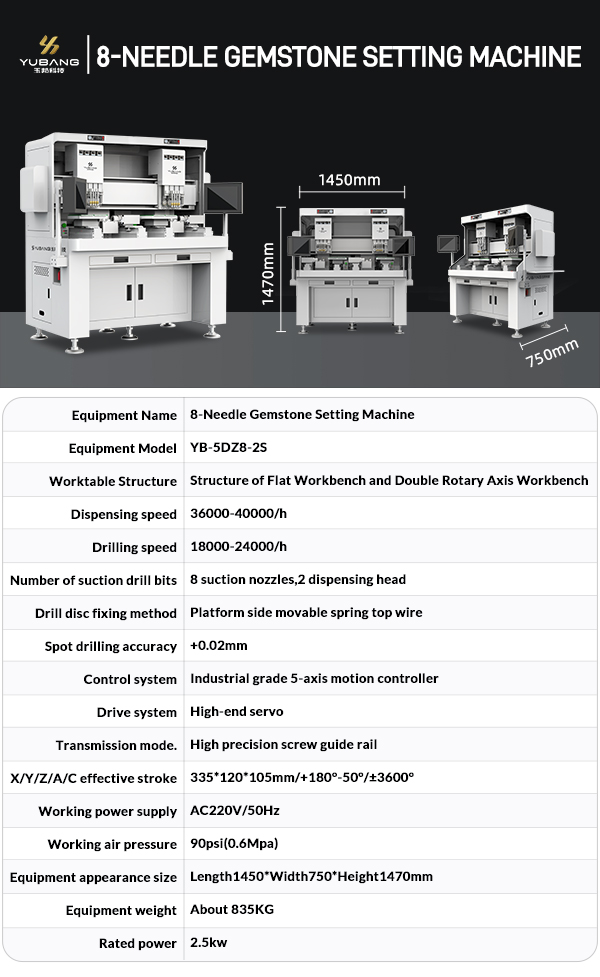

Product Features
Model | YB-5DZ8-2S |
Worktable Structure | Structure of Flat Workbench and Double Rotary Axis Workbench |
Dispensing speed | 36000-40000/h |
Drilling speed | 18000-24000/h |
Number of suction drill bits | 8 suction nozzles,2 dispensing head |
Drill disc fixing method | Platform side movable spring top wire |
Spot drilling accuracy | +0.02mm |
Control system | Industrial grade 5-axis motion controller |
Drive system | High-end servo |
Transmission mode. | High precision screw guide rail |
X/Y/Z/A/C effective stroke | 335*120*105mm/+180°-50°/±3600° |
Working power supply | AC220V/50Hz |
Working air pressure | 90psi(0.6Mpa) |
Size | Length1450*Width750*Height1470mm |
Weight | About 835KG |
Rated power | 2.5kw |
6 core advantages
Independent dual workstations — one machine, double capacity.
5-axis linkage — sets on flat, curved, and 3D surfaces.
8 synchronized suction nozzles — multi-color, multi-size setting.
Intelligent recognition system — zero rework, zero error.
All-in-one function — glue setting + gemstone setting + wax setting.
Stable and precise — no product or stone damage, long machine life.
Its 5-axis linkage structure, CNC precision control, and intelligent identification system ensure ±0.02mm accuracy, zero rework, and up to 24,000 stones per hour—boosting production efficiency by over 400%.Perfect for setting diamond, zircon, moissanite, rhinestones, pearls, and synthetic gemstones.
This machine is the better choice for Jewelry Manufacturing Factories,Jewelry Design Workshops,Training Schools for Jewelry Design and Jewelry Industry comparing with common type.
